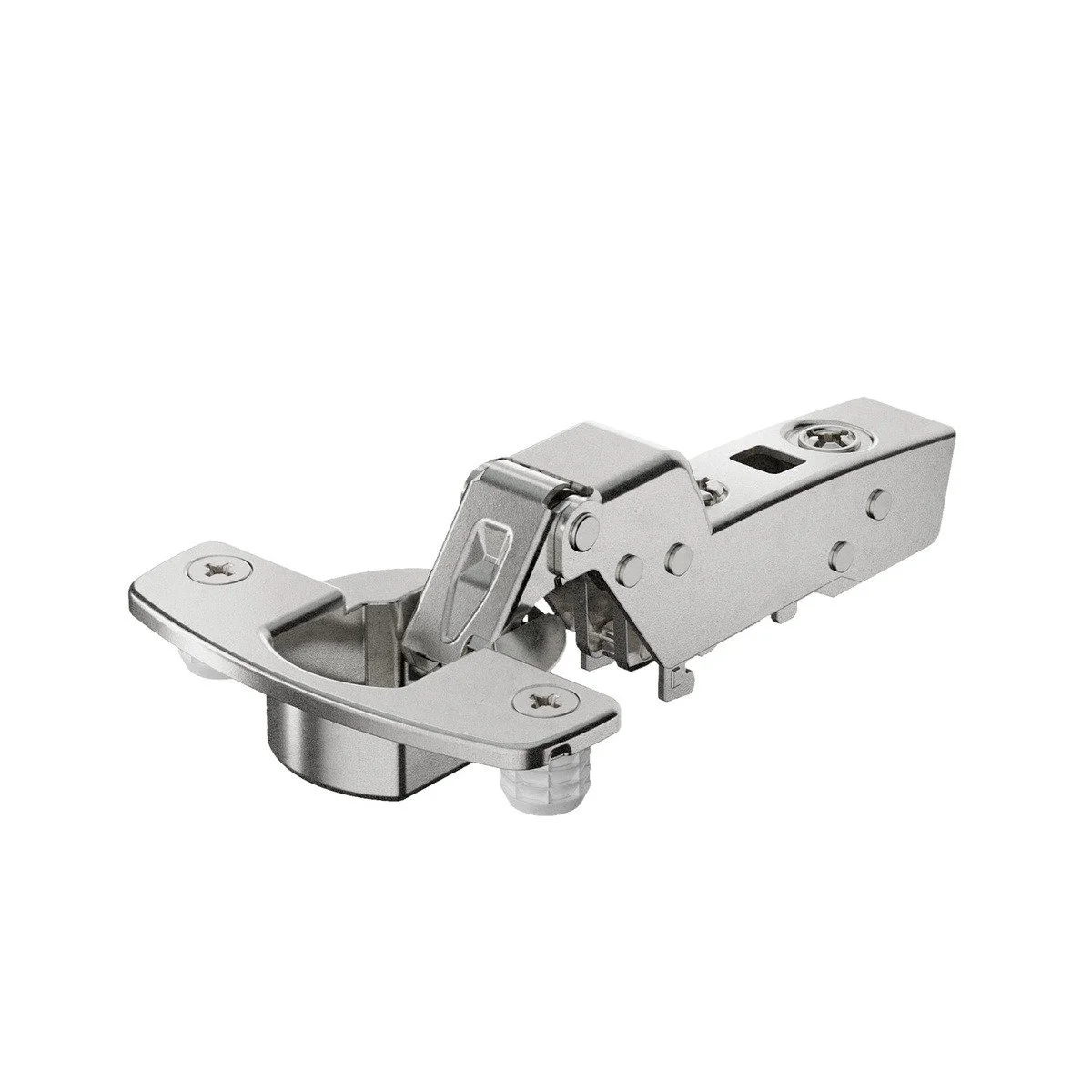

Concealed Hinges
Half Overlay
Mounting Type:
Screw on, Press in, INSERTA and EXPANDO
Closing Type:
Soft Close, Self Close and Free Swing
Opening Angle:
120°, 110° and 95°
Compatible Materials:
Wood, MDF, melamine and aluminum
Door Thickness:
up to 1”, up to 7/8”, up to 3/4"
Available Brands:
Hettich, Blum, Salice and Generic
Full Overlay
Mounting Type:
Screw on, Press in, INSERTA and EXPANDO
Closing Type:
Soft Close, Self Close and Free Swing
Opening Angle:
120°, 110° and 95°
Compatible Materials:
Wood, MDF, melamine and aluminum
Door Thickness:
up to 1”, up to 7/8”, up to 3/4"
Available Brands:
Hettich, Blum, Salice and Generic
Inset
Mounting Type:
Screw on, Press in, INSERTA and EXPANDO
Closing Type:
Soft Close, Self Close and Free Swing
Opening Angle:
120°, 110° and 95°
Compatible Materials:
Wood, MDF, melamine and aluminum
Door Thickness:
up to 1”, up to 7/8”, up to 3/4"
Available Brands:
Hettich, Blum, Salice and Generic
Zero Protussion 155°
Overlay Type:
Full Overlay and Half Overlay
Mounting Type:
Screw on, Press in, INSERTA and EXPANDO
Closing Type:
Soft Close, Self Close and Free Swing
Compatible Materials:
Wood, MDF and melamine
Door Thickness:
7/8”
Available Brands:
Hettich, Blum, Salice and Generic
Bifold 60°
Mounting Type:
Screw on, Press in
Closing Type:
Self Close
Compatible Materials:
Wood, MDF, and melamine
Door Thickness:
up to 7/8”
Available Brands:
Hettich, Blum, Salice and Generic
Diagonal 45°
Overlay Type:
Full Overlay and Insert
Mounting Type:
Screw on, Press in and INSERTA
Closing Type:
Soft Close and Self Close
Opening Angle:
95°
Compatible Materials:
Wood, MDF and melamine
Door Thickness:
up to 1”
Available Brands:
Hettich, Blum, Salice and Generic
Blind Corner 90°
Overlay Type:
Full Overlay and Insert
Mounting Type:
Screw on, Press in and INSERTA
Closing Type:
Soft Close and Self Close
Opening Angle:
95°
Compatible Materials:
Wood, MDF and melamine
Door Thickness:
up to 1”
Available Brands:
Hettich, Blum, Salice and Generic
Face Frame
Overlay Type:
1/2", 5/8", 3/4", 1" and 1 1/4"
Mounting Type:
Screw on and Press in
Closing Type:
Soft Close
Opening Angle:
105°
Compatible Materials:
Wood, MDF and melamine
Door Thickness:
3/4”
Available Brands:
Hettich and Blum
Aluminium Door Hinges
Overlay Type:
Full Overlay, Half Overlay and Insert
Mounting Type:
Screw on
Closing Type:
Soft Close
Opening Angle:
95°
Compatible Materials:
Aluminium
Door Thickness:
3/4”
Available Brands:
Hettich
Glass Door Hinges
Overlay Type:
Full Overlay, Half Overlay and Insert
Mounting Type:
Screw on
Closing Type:
Soft Close
Opening Angle:
95°
Compatible Materials:
Glass
Door Thickness:
3/4”
Available Brands:
Hettich, Blum
Plate for Hettich Hinges
Cross mounting plate with Direct height adjustment nickel plated
Installation:
With chipboard screws (for drilling ø2,5 mm), for pressing in (for drilling ø 10 x 12 mm), with expanding sockets (for drilling ø 5 x 12 mm), with euro screws (for drilling ø 5 x 12 mm),
Hole line:
37x32 mm
With clipboard screws:
(for drilling ø2,5 mm)
Distance:
0.0 mm, 1.5 mm, 3.0 mm and 5.0 mm
Face Frame Plate for Hettich Hinges
For Sensys, Novisys, and Intermat
Quality classification under EN 15570, level 3
For Hole line:
9.5 x 40 mm
Installation for screwing on
Distance:
0.0 mm
Adjustment range:
+2 mm/-2 mm steel nickel plated
Mounting Plates for Blum Hinges
Steel, nicked-plated
Attached:
With #6x5/8” wood screws
Cam height adjustment:
±2 mm
Wood screw, System screw, EXPANDO, INSERTA
Two Pieces Wing Mounting Plates for Blum Hinges
Steel, nicked-plated
Attached:
With #6x5/8” wood screws
Cam height adjustment:
±2 mm
Wood screw, System screw, EXPANDO, INSERTA
BLUM mounting plate for frame cabinet
Steel, nicked-plated
Attached:
With #6x5/8” wood screws
Cam height adjustment:
±2 mm
Wood screw, System screw
